FIRE PROTECTION DIRECT
FIREFLY Fire Protection Products
Shop FIREFLY passive fire protection products including flexible fire barriers, FB180 ablative fire batts, fire collars, penetration protection, fixings and system ancillaries.
FIREFLY systems are used for tested compartmentation applications in concealed spaces, roof voids, walls, floors and service penetrations depending on the specific tested system, orientation, supporting construction and installation detail.
FIRE PROTECTION DIRECT
Need Help Specifying a FIREFLY System?
Choosing a FIREFLY system depends on the application, orientation, supporting construction, required fire resistance, dimensions, penetrations and tested installation detail. Speak to our team if you need help identifying the appropriate product before ordering.
EXPLORE THE FIREFLY RANGE
Shop FIREFLY Fire Protection Products
Browse FIREFLY passive fire protection products, load more without leaving the page or switch manufacturers to explore other ranges. Select any product for technical information, options and pricing.
-
FIREFLY® Ablative Coating 5L
£36.24 inc VAT VIEW PRODUCT -
FIREFLY® Aluminium Foil Tape – 75mm x 45m
£12.70 inc VAT VIEW PRODUCT -
FIREFLY® Apollo Horizontal 30:30 Fire Barrier – 1.30m x 6m
£299.61 inc VAT VIEW PRODUCT -
FIREFLY® Apollo Lite 30:30 Fire Barrier – 1.27m x 6m
£299.62 inc VAT VIEW PRODUCT -

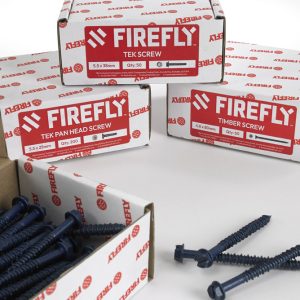

FIREFLY® Concrete Screws 70mm
£29.62 inc VAT VIEW PRODUCT -
FIREFLY® FB180 Ablative Batt Wall System 60mm – 1200 x 600mm
£52.15 inc VAT VIEW PRODUCT -
FIREFLY® FB180 Ablative Fire Batt 50mm – 1200 x 600mm
£40.92 inc VAT VIEW PRODUCT -

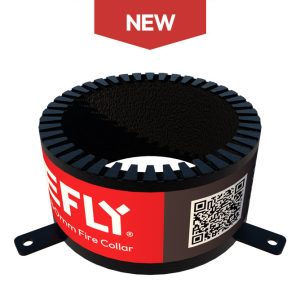

FIREFLY® FCR Intumescent Fire Collar
From £16.08 VIEW PRODUCT This product has multiple variants. The options may be chosen on the product page
PASSIVE FIRE PROTECTION
FIREFLY Flexible Fire Barriers and Fire Stopping Systems
FIREFLY is the passive fire protection brand of TBA Protective Technologies Ltd and specialises in flexible passive fire protection systems for maintaining compartmentation through concealed spaces, roof voids and other building cavities. The range includes vertically tested flexible fire barriers as well as separately tested horizontal systems for applications covered by the relevant FIREFLY documentation.
The wider FIREFLY system includes FB180 ablative batt products, penetration protection, fire collars, Penowrap, Collaroll and specified installation ancillaries. Selection depends on the tested application, orientation, supporting construction, required Integrity and Insulation performance, dimensions, penetrations and the relevant installation detail.
Popular FIREFLY Solutions
MORE FIRE PROTECTION PRODUCTS
Explore Other Fire Protection Categories
Looking beyond the FIREFLY range? Explore our fire stopping, fire barriers, coatings, penetration sealing, fixings and installation product categories.
APPLICATION GUIDANCE
Find FIREFLY Fire Protection by Application
FIREFLY products form tested passive fire protection systems for different orientations, constructions and compartmentation requirements. The appropriate system depends on the application, required Integrity and Insulation performance, supporting construction, dimensions and penetrations.
The table summarises common FIREFLY applications and the product families that may be relevant. It is intended as general guidance only and is not a specification or substitute for project-specific technical advice.
Always verify the current FIREFLY installation drawing, certification and product documentation before installation.
| Application | Typical system requirement | Relevant FIREFLY products |
|---|---|---|
| Vertical concealed-space / roof-void compartmentation | Vertically tested flexible barrier selected for the required Integrity and Insulation performance and approved installation detail. | Phoenix, Apollo Lite 30:30, Zeus Lite 90:30, Titan Lite 120:60 |
| Horizontal concealed-space compartmentation | A specifically tested horizontal FIREFLY system. Do not substitute a vertical system unless manufacturer documentation permits it. | Apollo Horizontal 30:30, Titan Lite Horizontal 90:60 |
| Restricted-access wall compartmentation | A tested batt wall arrangement matched to supporting construction, dimensions and penetrations. | FB180 Ablative Batt 60mm Wall System |
| Restricted floor / above-ceiling compartmentation | A tested horizontal batt arrangement installed to the relevant manufacturer floor-system detail. | FB180 Ablative Batt floor system |
| Awkward shapes and penetration details around flexible barriers | A compatible batt or penetration detail that maintains the tested FIREFLY system. | FB180 Ablative Batt 50mm |
| Combustible pipe penetrations | A tested penetration collar/seal arrangement matched to pipe type, size and supporting construction. | FIREFLY Fire Collar FCR |
| Barrier heads, penetrations and system ancillaries | Use the exact ancillary/fixing arrangement shown in the relevant installation drawing. | Penowrap, Collaroll, High Temperature Adhesive, fixing angles, staples, screws and washers |
TECHNICAL RESOURCES
FIREFLY Technical Resources & Installation Guides
FIREFLY provides product data, installation guides, certification and technical drawings for its tested passive fire protection systems. Always check the latest manufacturer documentation for the exact system and application before installation.
TECHNICAL GUIDANCE
FIREFLY Systems, Installation and Compliance
FIREFLY fire protection products form tested systems. Performance depends on using the correct barrier or batt, orientation, supporting construction, overlaps and joints, penetrations, fixings and associated ancillary products in accordance with the relevant installation detail.
- Select the appropriate FIREFLY system for the application, orientation and required performance.
- Follow the current FIREFLY installation guides, drawings and certification.
- Use specified compatible ancillaries, fixings, overlaps, supports and penetration details.
- Do not substitute components or modify tested installation details without suitable supporting evidence or manufacturer guidance.
- For non-standard conditions, obtain appropriate project-specific technical guidance.
What Information Should I Provide?
For product guidance, it helps to provide the key details of the construction, application and fire performance required:
- Wall, floor, roof or void construction
- Vertical or horizontal application
- Required Integrity / Insulation performance
- Opening or void dimensions
- Supporting construction
- Service and penetration details
- Existing FIREFLY system/detail if known
FREQUENTLY ASKED QUESTIONS
FIREFLY Fire Protection FAQs
FIREFLY products are used in tested passive fire protection systems for applications including compartmentation of concealed spaces and voids, flexible fire barriers, ablative batt systems and penetration protection. The correct product and system depend on the construction, orientation, required fire resistance and relevant manufacturer detail.
They are different FIREFLY flexible fire barrier systems with different tested Integrity and Insulation performance. Phoenix provides Integrity without an Insulation rating, while Apollo Lite 30:30, Zeus Lite 90:30 and Titan Lite 120:60 provide increasing combinations of Integrity and Insulation. The required system should be selected from the relevant tested detail rather than by product name alone.
FIREFLY provides specifically tested horizontal barrier systems as well as vertical systems. Products such as Apollo Horizontal and Titan Lite Horizontal are designed for horizontal applications. Do not assume that a vertical barrier can be used horizontally unless the manufacturer's tested documentation specifically permits it.
FIREFLY FB180 Ablative Batt is used within tested FIREFLY passive fire protection systems, including complementary details around flexible barriers and dedicated wall or floor compartmentation systems. Different batt thicknesses and arrangements have different applications, so the current FIREFLY installation drawings and product documentation should always be checked.
You can shop and order FIREFLY fire protection products directly from this page. The product catalogue displays FIREFLY products with AJAX Load More and links to individual product pages.
FIREFLY PASSIVE FIRE PROTECTION
Ready to Order FIREFLY Fire Protection Products?
Shop our FIREFLY range online or speak to Fire Protection Direct for help identifying the appropriate product for your application.
