FIREFLY® Galvanised Fixing Angles 1.2m – Pack of 10
FIREFLY® galvanised fixing angles are system components for securing and clamping flexible fire barriers to suitable substrates. Supplied in packs of ten 1.2m lengths, the range includes 25mm x 25mm and 50mm x 50mm options for the supporting or clamping role specified in the relevant FIREFLY® detail.
From £22.20
Description

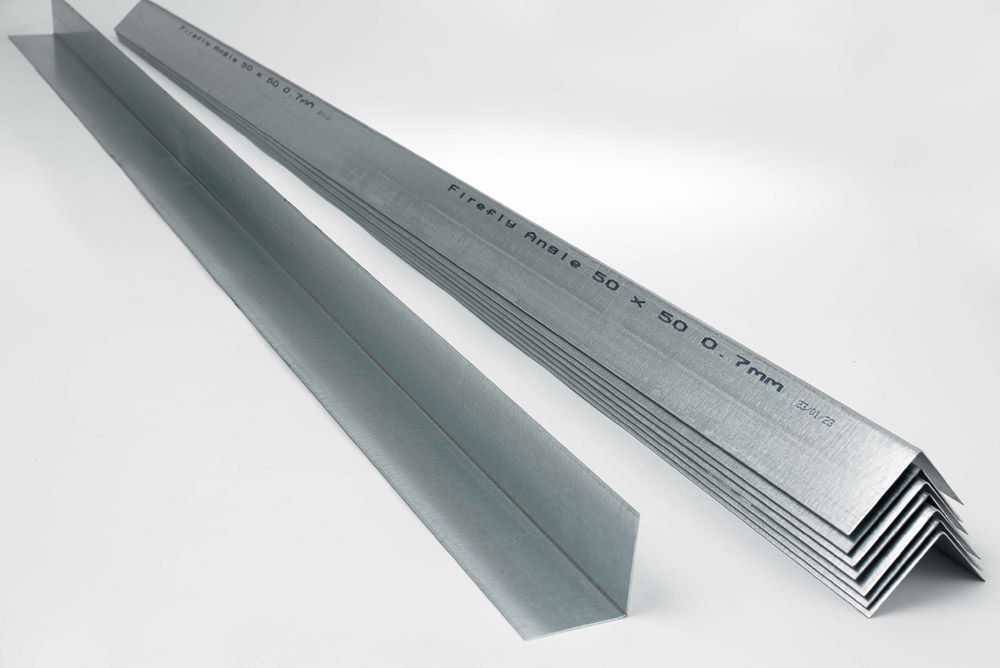

FIREFLY® Fixing Angles are galvanised steel system components used to support and clamp flexible fire barriers at the perimeter and at designated junctions. They are supplied in manageable 1.2m lengths and should be selected according to the specific FIREFLY® barrier drawing.
Key features
- Available in 25mm x 25mm and 50mm x 50mm profile options
- Supplied as packs of ten 1.2m lengths
- Galvanised steel construction for robust on-site handling
- Designed for use with FIREFLY® barriers, channels, TEK screws and substrate fixings
- Helps reproduce the support and clamping arrangement used in the tested system
System use
The 50mm profile is commonly used as a supporting angle, while the 25mm profile is commonly used to clamp the barrier. The exact arrangement varies by product, orientation and substrate.
Installation note: Do not substitute angle dimensions, material or fixing centres without written confirmation from the FIREFLY® technical team.
Additional information
| Size | 25mm x 25mm 1.2m Pack 10, 50mm x 50mm 1.2m Pack 10 |
|---|
