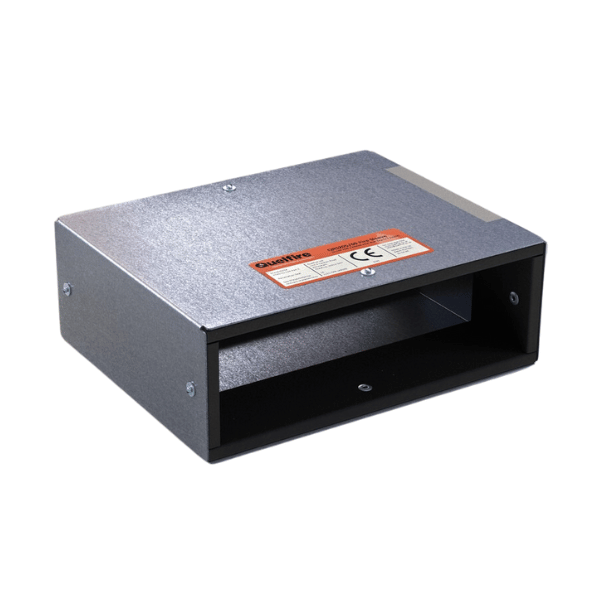

Quelfire QRS Intumescent Fire Sleeve for Ventilation Ducts
Quelfire QRS is a pressed-steel intumescent sleeve for approved plastic ventilation ducts passing through fire-rated walls. Its graphite core expands as the duct softens, helping close the penetration without a separate surface-mounted collar.
From £24.66
Description
Quelfire QRS Intumescent Fire Sleeve for Ventilation Ducts uses a compact metal shell and graphite-based intumescent core to react rapidly in a fire and seal the opening left by a melting duct.
Key features
- Designed for approved plastic ventilation duct penetrations
- Suitable for selected plasterboard, masonry and QuelStop Fire Batt wall systems
- No external mechanical collar or additional framework in the specified detail
- Available in sizes to suit common rectangular ventilation ducts
- Fire performance depends on wall type, sleeve size and penetration arrangement
Typical applications
Use where plastic extract or ventilation ductwork passes through a compatible fire-resisting wall and QRS is specified.
Installation note: Cut the aperture closely around the sleeve and position it at the required depth. Follow the Quelfire drawing for wall build-up and any perimeter sealant.
Additional information
| Size | 110x54mm, 204x60mm, 220x90mm |
|---|
