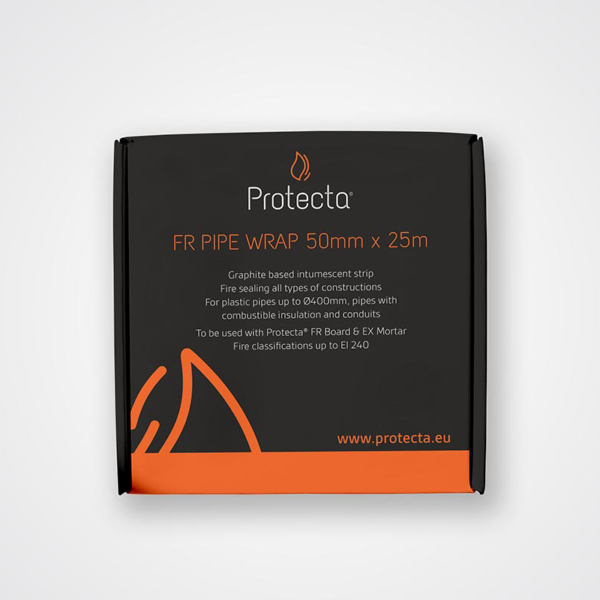

Protecta FR Pipe Wrap Roll 50mm x 25m
Protecta FR Pipe Wrap Roll is a continuous 50mm-wide graphite intumescent strip supplied in a 25m roll. It can be cut to the required length on site for approved plastic pipes, conduits and insulated metal pipes passing through fire-rated walls and floors.
£113.20 inc VAT
Description
Protecta FR Pipe Wrap Roll 50mm x 25m provides a continuous length of graphite-based intumescent material for creating pipe wraps to suit approved service penetrations. It offers a practical option when multiple pipe sizes are being fire-stopped on the same project.
Key features
- 50mm-wide intumescent strip supplied in a 25m roll
- Cut to the required length on site to reduce waste
- Suitable for approved plastic pipes, conduits and metal pipes with combustible insulation
- Expands when heated to help close the opening left by softened pipework or insulation
- Compatible with Protecta FR Board, EX Mortar and other approved penetration-seal systems
- Can achieve fire resistance up to EI 240 depending on the tested configuration
Installation
Cut the specified number of layers to length, wrap them around the service and secure the material before completing the surrounding annular seal.
Installation note: The number of layers, wrap position and supported pipe diameter must be taken from the current Protecta tested detail.
